NEO·M multi-component · vertical rotary turntable
- 750 – 3 520 t
- Vertical rotary turntable
- Up to 6 injection units
- European KEBA control

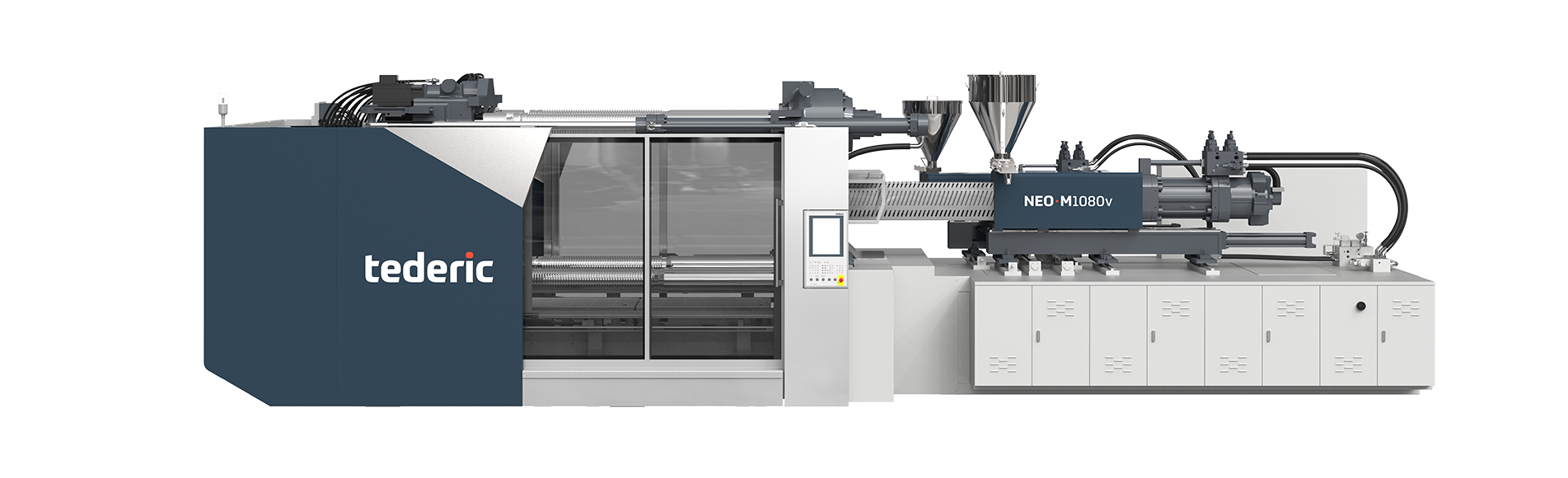

NEO ·Mv
Up to six injection units. One modular platform.
NEO·Mv is the modular multi-component machine with a vertical rotary turntable (SpinSure™-V). Mixed colour, multi-colour, sandwich and multi-layer moulding — on a toggle or two-platen base.
Highlights
Why this machine
- Modular injection unit combinations — up to 30 options in theory, with up to 6 injection units at the same time.
- Mixed colour, multi-colour, sandwich and multi-layer moulding of multi-material products.
- Two-platen machine with vertical turntable up to 2 250 mm diameter.
- Static pressure support carries mould weights up to 30 t on the turntable.
- Clamping force
- 750 – 3 520 t · 7 500 – 35 200 kN
- Clamping structure
- Two-platen or toggle
- Power system
- Hydraulic or hybrid (hydraulic + electric)
- Control system
- European KEBA control
Technology
What is inside
Independent SpinSure™-V vertical rotary platen
The vertical rotary platen can be an independent control unit — a modular design that is easy to install, maintain and retrofit on existing equipment.
Parallel injection units with adjustable spacing
Two single-cylinder in-line injection units run precisely and efficiently. The spacing is adjustable to suit moulds with different sprue distances, and the unit can move sideways so the machine also runs as a single-colour machine.
Static pressure support for the rotary platen
Static pressure support and claws secure the mould load, so heavier moulds can be used while the rotary platen runs stably.
Applications
Main application sectors
- Packaging
- Automotive parts
- Home appliance
- Logistics
Also in the NEO·M family
NEO·Ms
Large two-colour automotive parts with a horizontal rotary platen and opposite injection unit? NEO·Ms is the compact two-platen alternative.
Run the numbers on NEO·Mv.
Send the part drawing, materials and target cycle time. You get a model proposal with the calculation, options and a delivery date.
Sold, installed and serviced by AJSolutions — Tederic's exclusive Benelux distributor.
