NEO·M multi-component · horizontal rotary platen
- 1 120 – 3 520 t
- Horizontal rotary platen
- Opposite injection
- European KEBA control

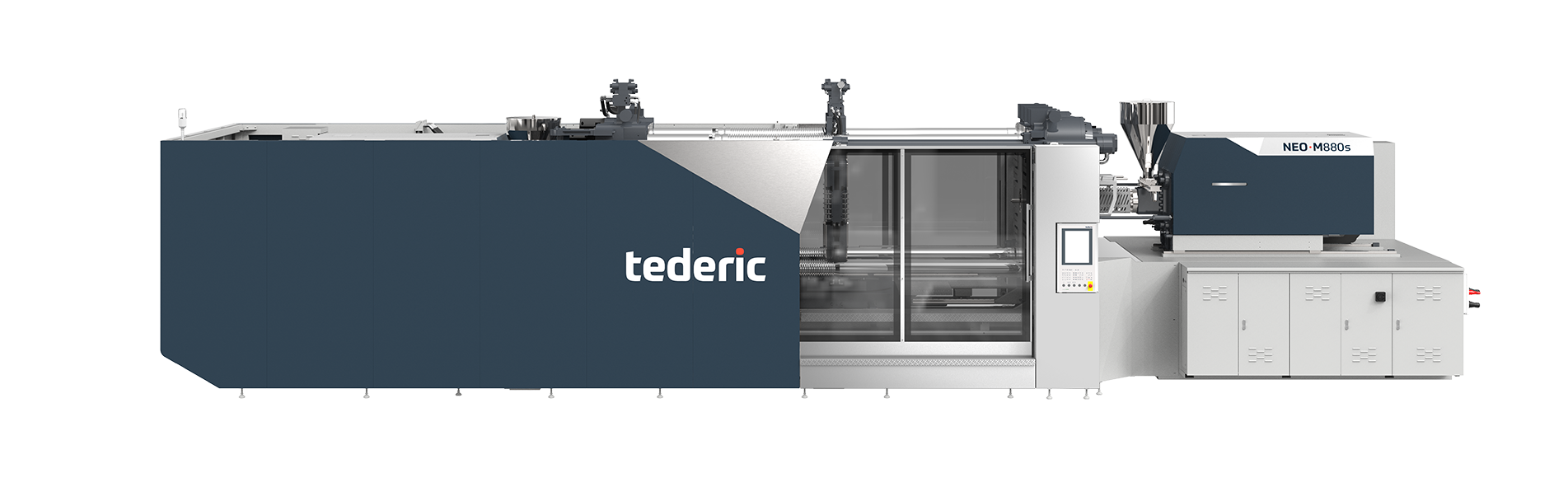

NEO ·Ms
Complex two-colour parts in a compact footprint.
NEO·Ms combines a two-platen clamping unit with an opposite injection unit and a horizontal rotary platen (SpinSure™-H). Award-winning, compact and easy to configure for multi-purpose production.
Highlights
Why this machine
- Two-platen clamping unit with opposite injection unit: complex two-colour parts in less floor space.
- Shot weight precision ≤ 0.3%.
- Winner of an industry innovation award.
- Flexible, customised solutions built around your part characteristics.
- Clamping force
- 1 120 – 3 520 t · 11 200 – 35 200 kN
- Clamping structure
- Two-platen
- Power system
- Hydraulic or hybrid (hydraulic + electric)
- Control system
- European KEBA control
Technology
What is inside
Exclusive SpinSure™-H horizontal rotary platen
Heavy-duty linear guide for the medium platen carries heavier moulds with lower friction. Servo motor and reducer rotate larger, heavier moulds — ideal for special two-colour automotive tools. Medium platen movement is proportional-valve controlled, with positional repeatability ≤ 1 mm.
Built-in high-pressure clamping cylinder
The built-in short-stroke high-pressure clamping cylinder builds clamping force quickly and spreads the force evenly over the mould.
Opposite injection units and optional sub-injection
Two opposite single-cylinder precision injection units or a high-speed all-electric unit can be fitted at the same time. The opposite unit moves synchronously with the moving platen for higher efficiency. An additional sub-injection unit with MultiMold™ extends the machine's functions.
Modular choice of injection unit
Electric injection unit with injection position repeatability to 0.01 mm; single-cylinder in-line unit for low resistance and fast response; or parallel injection unit for more stable injection and good sealing.
Centralised carriage lubrication
Manual lubrication pump with pressure release and a monitored grease distributor — tidy, uniform layout.
Applications
Main application sectors
- Automotive parts
- Home appliance
- Logistics
Also in the NEO·M family
NEO·Mv
Need a vertical rotary platen, toggle option or up to six injection units? NEO·Mv is the modular multi-component machine with a vertical turntable.
Run the numbers on NEO·Ms.
Send the part drawing, materials and target cycle time. You get a model proposal with the calculation, options and a delivery date.
Sold, installed and serviced by AJSolutions — Tederic's exclusive Benelux distributor.
